Application |
|
- Designed to house electrical, electronic, hydraulic or pneumatic
controls and instruments.
- Provides a degree of protection from falling dirt, dust, oil and
water.
|
|
Standards |
- UL 508 Type 12
- Complies with
- JIC EGP-1-1967 unless marked¹
|
|

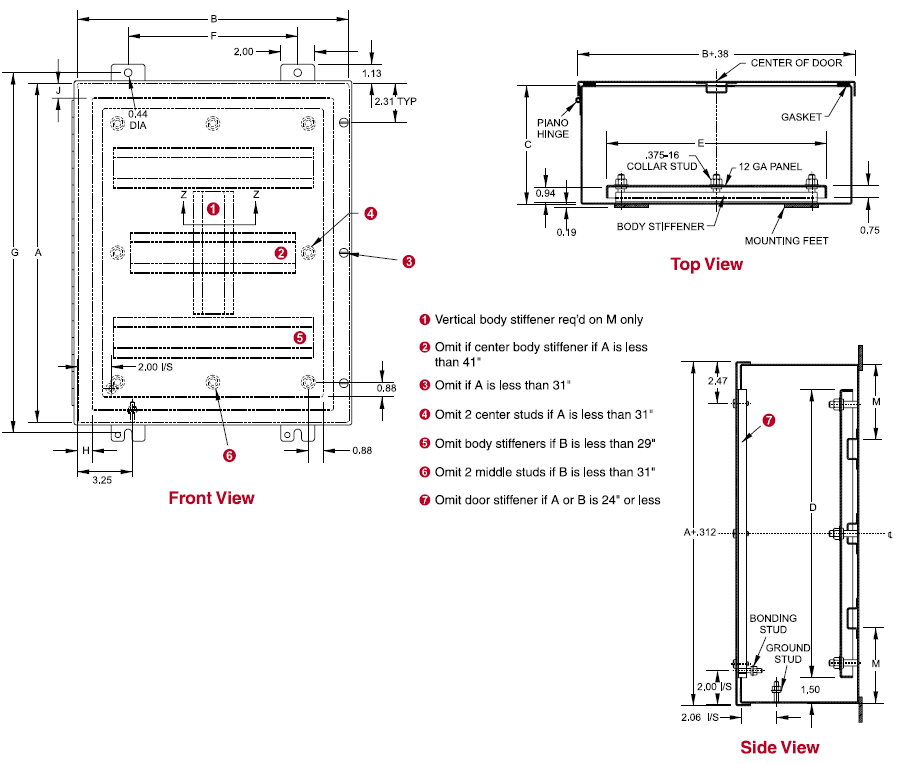

Construction |
- Formed from 14 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts or
holes.
- Door and body stiffeners are provided in the larger enclosures for
extra rigidity.
- Welded brackets provide for enclosure mounting.
- Continuously hinged cover is secured with plated screws, threaded
into sealed wells.
- Oil resistant gaskets are permanently secured.
- A removable 12 gauge inner panel is included.
- Collar studs are provided for mounting inner panels.
- A grounding stud is provided in the enclosure and a bonding stud
is provided on the door.
- A literature pocket is provided for the inside of the door.
|
|
Finish |
- Cover and enclosure are phosphatized and finished in ANSI 61
gray recoatable powder coating.
- Removable inner panel is finished in white powder coating.
|
|
