FREQUENCY COUNTERS

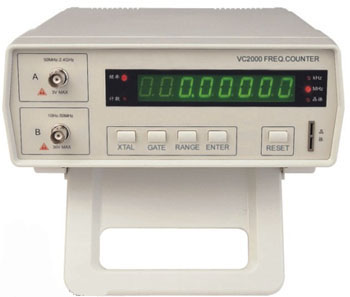

VC2000- FREQUENCY COUNTER

  • 8 digits green LED display with annunciators
  • Two channels, operation mode memory
  • Range and gate time adjustable
  • High safety design as per IEC1010, CAT II



Price: $120.00

Technical specifications

Frequency measurement:

10Hz - 2.4 Ghz

Crystal measurement:

3.5MHz - 16Mhz

Input characteristics

Channel A: (50MHz - 2.4GHz)

Sensitivity: 25m/200m Vrms

Input resistance: 50 Ω

Maximum input: 30V

Power: AC 110V/220V, +- 10%

Max. consumption: 5W

Dimensions: 270x215x100mm

Weight: approx. 1.6kgs

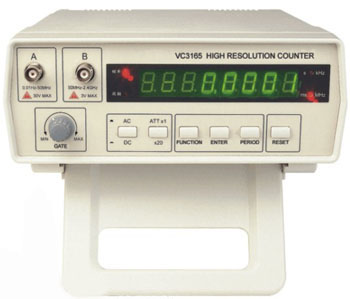

VC3165 - INTELLECTIVE FREQUENCY COUNTER

  • 8 digits green LED display with annunciators
  • Two channels, operation mode memory
  • Range and gate time adjustable
  • High safety design as per IEC1010, CAT II





Price: $139.99



Technical specifications

Frequency range: 0.01Hz - 2.4 Ghz

Accuracy: time base error x frequency +- 1 digit

Time gate: 100mS - 10S

Input characteristics

Channel A: (40MHz - 2.4 GHz)

Sensitivity: 50m Vrms

Input resistance: 50 Ω

Maximum input: 30V

Power: AC 110V/220V, +- 10%

Max. consumption: 5W

Dimensions: 270x215xx100mm

Weight: approx. 1.6kgs
