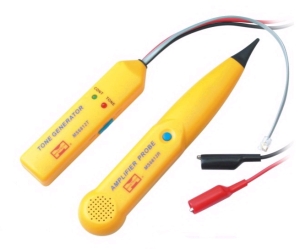

MS6812
Line Tracker

$44.90

Designed to identify and trace wires or cables within a group without damaging the insulation
Cont test
Volume control increased sensitivity
Recessed ON/OFF button prevent  battery drain


Specifications:

Emitter tone frequency:  1.5kHz
Receiver frequency range: 100 ~ 300kHz
Battery: 9V x 1, 6F22

Size: emitter 106g

receiver  114g ( incl. battery )

CABLE TRACKER WITH TONE GENERATOR


VTTEST11

$47.90

Features

• network tester: consists of a tone generator and a probe
• method: use the tone generator and the probe to determine where a cable is going and whether or not (and where) the cable is interrupted
• signal viewing in 3 modes: lamp (L), speaker (SP) or both (S&L)
• tone generator output (square waveform): single (900Hz) or dual (900 - 1000Hz)
• comes with: soft carrying bag

Specifications

• tone generator:
  • working voltage: DC 9V ±15% (battery not incl.)
  • working current: 10mA (intermittent tone) / 20mA (continuous tone)
  • output wave form: square wave signals ±10Vpp
    • single audio frequency: ± 900Hz
    • dual audio frequency: ± 900Hz - 1000Hz
  • dimensions: 4.5" x 2.4" x 1.1"
  • weight: ± 4.59oz
• probe:
  • working voltage: DC 9V ±15% (battery not incl.)
  • working current: 25mA (L) / 80mA (max. SP volume) / 100mA (max S&L volume)
  • max. reception sensitivity: > 30mV
  • maximum output volume: ±120dB
  • dimensions: 8.1" x 1.6" x 1.5"
  • weight: ±2.82oz
