Soldering Stations


We have the following soldering stations and soldering irons in stock. All are made by Solomon and are quality brand-name merchandise.


 $359.00

SL-916 - Soldering and Desoldering Iron Station

SL-916 is Solomon's top of the line service center and it will handle virtually all electronic repair and rework applications. The SL-916 will simultaneously control temperature either of the two sizes of soldering iron and desoldering handle, or control both soldering irons.
The SL-916 is based on the principle of vacuum absorption of the solder from the PCB. Easy desoldering of the tin by reversing the vacuum to positive air flow. There is a 2-position switch that shifts the control board from de-solder to solder allowing the concurrent operation of 2 irons.

The suction nozzle and the thermal pipes are exclusively designed for suction of filters even with the soldering tin in fusion and no regular manitenance is required, for optimal performance.
Easy cleaning. Remove the filter by simply turning a knob. The filter tube is made of heat-resistant glass, for a clear view of the suction. Combined powerful suction tin gun and high performance welder for optimal repair works.
Both the tin suction gun and the welder come with an output voltage of 23V, just to keep the circuit board from being burnt.


Looking for Soldering Tips for

SL-916 click here




Replacement Desoldering Gun
 for SL-916 & SL-928

SL-916G

 $52.80



Replacement Desoldering iron
 for SL-916 & SL-928

SL-916rep

 $19.00

Tips for the SL-916 Soldering and Desoldering Iron Station. The soldering iron uses SL-10 tips, listed on this page beside the SL-10 iron. The desoldering iron uses the five tips listed below. If you need help in selecting a particular tip(s) for your application, please send us an Email.

928-0.8T       $4.80
928-1.0T       $4.80
928-1.2T        $4.80
928-1.5T      $4.80
928-2.0T       $4.80

 $335

This unit uses the same tips as the SL-916.

SL-928 Desoldering Station

SL-928 is solomon's top of the line service center and it will handle virtually electronic repair and rework applications. The disordering mode's temperature controlled from 410XF or from 210XC to 480XC.
The SL-928 is based on the principle of vacuum absorb-tin of the solder from P.C. board. Easy disordering the tin by reversing te vacuum to positive air flow.
The suction nozzle and the thermal pipes are exclusively designed for suction of filters even with the soldering tin in fusion and no regular maintenance is required, for optimal performance.
Easy cleaning
Remove the filter by simply turning a knob. The filter tube is made of heat-resistant glass, for a clear view of the suction. Combined powerful suction tin gun and high-performance welder for optimal repair works.


Original : $475.20

Special: $ 399.00

The Hot Air SR-979 is engineered to meet the demanding needs of today's electronic industry, technicians, service/repair and assembly rework. The system not onlu increases productivity for SMD assembly and repair but achieves a new standard of quality in partnership with "Hot Air" SR-979 superior performance and ease of operation.

SR-979 - Hot Air SMD Rework Station



NOTE: The SR-979 only ships with one tip. Other tips are available to order from us, please see below.

Tips for the SR-979 SMD Rework Station. Used for various IC sizes and solder densities. If you need help in selecting a particular tip(s) for your application or IC(s), please send us an Email.

A1124

Price: $33

A1125

Price: $33.00

A1126

Price: $39.6

A1127

Price: $39.6

A1128

Price: $39.6

A1129

Price: $42

A1130

Price: $32.4

A1131

Price: $39.6

A1132

Price: $39.6

A1133

Price: $33

A1134

Price: $39.6

A1135

Price: $39.6

A1136

Price: $39.6

A1137

Price: $42.24

A1138

Price: $45.24

Rework Station



GW-8502D

Was:$239.00
Winter Special: $179.00

Input Voltage 115VAC10% 60Hz
Power Consumption 360W
Air Pump Membrane type
Temperature range of Nozzle 100C - 480C
Temperature range of Iron Tip 200C - 480C
Air Output 23L / min (the MAX)
Leakage Voltage of Iron Tip <5mV
Standard Iron Tip AT - 900M
Dimension 245(L) x 187(W)135(H)mm
Weight 5.7kg



Adjustable Temperature Controller Soldering Station   SL-10, SL-20, SL-30
SL-10





Voltage 110/120V AC
Power consumption 48W
Temp. setting range 150C~450C
300F~840F
Heater Operating Voltage 24V AC
Size Handpiece 203mm
Station L170:W116: H96 (mm)
Weight 1890g
Station-Handpiece cordlenght 115cm
AC Power cord 3pin plug 180cm

The Auto-Temp SL-10 Professional Quality Soldering iron Station is manufactured using only the highest quality materials and workmanship available, providing the operator with reliable high-tech features at a low-tech price.

$83.00

Looking for Soldering Tips or Replacement soldering handle for SL-10 click here



SL-20






















Voltage 110/120V AC
Power consumption 48W
Temp. setting range 150C~420C
300F~790F
Heater Operating Voltage 24V AC
Size Handpiece 203mm
Station L170:W116: H96 (mm)
Weight 1900g
Station-Handpiece cordlenght 115cm
AC Power cord 3pin plug 180cm

There are 12 LED displays on the panel of the SL-20 temperature-control soldering iron station thus making the temperature adjustment ranging from 150C to 420C, such an adjustment range is very suitable for the engineers to perform maintenance work, factory soldering and welding work and is also good for doing household works.

$ 79.00

Looking for Soldering Tips or Replacement soldering handle for SL-20 click here

SL-30

Voltage 110/120V AC
Power consumption 48W
Temp. setting range 160C~480C
320F~900F
Heater Operating Voltage 24V AC
Size Handpiece 203mm
Station L170:W116: H96 (mm)
Weight 1940g
Station-Handpiece cordlenght 115cm
AC Power cord 3pin plug 180cm

The temperature on the panel of the SL-30 Temperature Controlled Soldering Iron Station is displayed digitally with the adjustment range from 160C to 480C. The digitally displayed temperature on the panel can be adjusted to SET thus setting all the required temperatures for operation and such a setting is very accurate.

$99.60

Looking for Soldering Tips or Replacement soldering handle for SL-30 click here

Soldering Tips for SL-10's SL-20's SL-30's and SL-916

$4.60 / each


821 822 823 824 825 826 827



This is a replacement soldering handle for the
SL-10, SL-20, SL-30


Comes with a power cord and heater.

$15.65
Adjustable Temperature Controller Lead Free Soldering Station
SL-10LF, SL-20LF, SL-30LF
SL-10LF


Voltage 110/120V AC
Power consumption 48W
Temp. setting range 150C~450C
300F~840F
Heater Operating Voltage 24V AC
Size Handpiece 203mm
Station L170:W116: H96 (mm)
Weight 1890g
Station-Handpiece cordlenght 115cm
AC Power cord 3pin plug 180cm

The Auto-Temp SL-10LF Professional Quality Soldering iron Station is manufactured using only the highest quality materials and workmanship available, providing the operator with reliable high-tech features at a low-tech price.

$83.00

Looking for Soldering Tips or Replacement soldering handle for SL-10LF click here

SL-20LF






















Voltage 110/120V AC
Power consumption 48W
Temp. setting range 150C~420C
300F~790F
Heater Operating Voltage 24V AC
Size Handpiece 203mm
Station L170:W116: H96 (mm)
Weight 1900g
Station-Handpiece cordlenght 115cm
AC Power cord 3pin plug 180cm

There are 12 LED displays on the panel of the SL-20LF temperature-control soldering iron station thus making the temperature adjustment ranging from 150C to 420C, such an adjustment range is very suitable for the engineers to perform maintenance work, factory soldering and welding work and is also good for doing household works.

$ 79.00

Looking for Soldering Tips or Replacement soldering handle for SL-20LF click here

SL-30LF


Voltage 110/120V AC
Power consumption 48W
Temp. setting range 160C~480C
320F~900F
Heater Operating Voltage 24V AC
Size Handpiece 203mm
Station L170:W116: H96 (mm)
Weight 1940g
Station-Handpiece cordlenght 115cm
AC Power cord 3pin plug 180cm

The temperature on the panel of the SL-30LF Temperature Controlled Soldering Iron Station is displayed digitally with the adjustment range from 160C to 480C. The digitally displayed temperature on the panel can be adjusted to SET thus setting all the required temperatures for operation and such a setting is very accurate.

$99.60

Looking for Soldering Tips or Replacement soldering handle for SL-30LF click here

Soldering Tips for SL-10LF's  SL-20LF's  SL-30LF's


$4.60 / each

621 622 623 624 625
626 627 628 629




This is a replacement soldering handle for the
SL-10LF,  SL-20LF,  SL-30LF

Comes with a power cord and heater.

$15.65



SR-976

Price: $59.00

AUTO-TEMP. SOLDERING IRON STATION

Auto-Temp SR-976 temperature controlled soldering iron stations are engineered with a highly insulated ceramic heating element. Auto-
Temp SR-976 are constructed of
 high quality materials, workmanship
and incorporate the following
features;
.Fast heating
A 30-second welding!
Large heat volume and fast
 conduction to the welding nozzle,
.Steady temperature control
The themostat sensor is kept in the thermal element, for fast and steady control of temperature.
.Optimal insulation
The ceramic thermal element of
 optimal insulation does not overheat
and in the use, the insulation
resistance co-efficient remain at
over 100M.

Voltage 110/120V AC or 220/240V AC
Power consumption 50W
Temp.setting range 250C~480C   (470F~900F)
Size Handpiece 203mm
Station L170:W103:H90 (mm)
Weight 870g
Station-Handpiece cordlenght 115cm
AC Power cord 3pin plug 180cm
Soldering Tips for  SR-976



$4.60 / each

976T-B

976T-BC

976T-SB

976T-4C

976T-3C

976T-3D

Replacement Handle for  SR-976


$15.65



SR-998

$49.00



Power consumption

15W - 60W
Size of soldering iron 220mm
Size of machine L135mm * W95mm * H52mm
Weight Weight
AC Power cord 3pin plug 180cm





ADJUSTABLE ELECTRONIC SOLDERING STATION


The SR-998 adjustable electronic soldering iron is a easy adjustable welding equipment.

The temperature adjustment range from 15w to 60w.

Choose the exact watts you need for your soldering applications.

Soldering Tips for  SR-998

$4.60 / each

G1

G12

G3

G4

G5

Replacement Handle for  SR-998


$15.65






Soldering Irons

SR-982 - Ceramic Heater
25W
A ceramic heater in the nozzle provides longer service life by reduced oxidation and improved conductivity.
$16.80

Tips for the SR-982 ceramic heater soldering iron.



$4.60 / each

982T-3D
982T-3C
982T-4C
982T-SB
982T-B
982T-BC

KN-30
30W
General purpose 30W Soldering Iron for most applications.
$12.90


Tips for the KN-30

$4.60




SR-963
40W
Designed for laboratory and household repair soldering.

$12.90
Tips for the SR-963 soldering iron.


$4.60/ each

F1
F2
F3



CSI-40
40W
-Fitted with car cigar lighter plug
-Operated from 12 volts either DC or AC
-Nickel plated tip
$12.99


KN-60 60W $16.00
KN-80 80W $17.00






SH-812
10
0W
Designed for major soldering work, such as bus bars, stained glass, and large cable connectors.

$19.20

Tips for the SH-812 soldering iron.


$4.60 / each


E1
E2
E3


Battery Operated Soldering Iron
SL-089

This portable soldering iron is operated by means of 3x1.5V size AA batteries.
With 3 new batteries, this soldering iron can operate continuously for approx. 60  minutes.
Slide On/Off switch

$23.00


SH-60

Based on the principle of vacuum absorption of the solder from PCBs. Facilitates easy desoldering of the tin, tip also increases temperature.

$16.80



Accessories

Sucker Tin Pump
SH-817B

Cleans off solder instantly. Replaceable tip.
$6.90


13" Solder Sucker
AX-108

Powerful solder sucker with large capacity, powerful spring and simple operation. Twice the size of a regular desoldering pump.
$9.00


Sucker Tin Pump
AT-E201

Anti-rust spring, pull - type design, strong vacuum
 power for high efficiency in tin removal
Ensured by an oil - sealed piston, no air leakage
Built- in tip for easy replacement


Size (mm): 210 x 26
$6.90



Soldering Iron Stand
SH-814

The SH-814 is good for dissipating and insulating heat It allows the iron to have a larger surface area of contact with air.
$6.90


Mini Soldering Pot

150W
110V~120V

$29.00


Solder Aid Tools
$ 8.99

Cleaning rods for Desoldering Gun

$ 5.99

Helping Hand

 MM-90
Heavy duty cast iron base
Two alligator clamps hold light materials  steady
2X ,2-1/2" magnifying glass for close inspection
ONLY $ 7.90






TIP Cleaner and Stand

Made of low abrasive brass shavings with no water required. No temperature drop as with conventional sponges. Stainless steel holder and rubber foot pad

84-105-0

$ 8.90




Filter (Steel and wool) for Desoldering Gun

$0.90





Replacement Solder Sponge

7cm x 4.5cm

$ 1.90


ET1030
Soldering Flux for Instant Melting  of Joints  Permitting Fast Work

$ 2.95

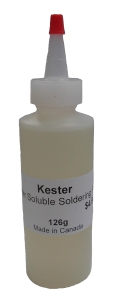

Kester
Water Soluble Soldering  Flux

126g
Made in Canada

$ 4.90

Solder Core
Solder core
Basic resin core solder used for all standard soldering applications. One pound (454g) is sufficient for hundreds of separate projects , has a composition Sn63 Pb37 (63/37)  3.3 % flux
S-30 1LB  / 0.5mm $ 22.00

S-32 1LB / 0.8mm $ 22.00

S-34 1LB / 1mm $ 22.00

S-36 1LB / 1.2mm $ 22.00

S-40 1KG / 0.031" $ 39.00




Lead Free Solder Core

Basic resin core solder used for all standard soldering



S-32LF 1LB / 0.8mm $ 24.00

S-34LF 1LB / 1.0mm $ 24.00


Solder Tube
63/37
Weight:15 grams

$2.00


 Solder Core
Lead Free
Dia:1.0mm
Weight:15 grams

$2.00


Solder wick
Spool of solder wick. Wick is used to remove excess solder from small joints or spillage on project boards. Easily dispensable and disposable.
Size Length Price Paypal
1mm 50 Ft $ 7.90

2mm 5 Ft $ 2.90

3mm 5 Ft $ 2.90








Email us if you have any questions.
