LED Light Emitting Diodes A-1 Electronic Parts

LED's

White LED Fluorescent
Item No.	LED Quantity	Product Size	Input Voltage (V)	Equals to traditional lamp	Price/ Paypal
T5600-5W	52 Pieces	L: 600mm (24") D: 16mm (0.63")	AC85~260	14W	$29.60
T51200-9W	104 Pieces	L: 1200mm (48") D: 16mm (0.63")		28W	$48.50
T8600-8W	150 Pieces	L: 600mm (24") D: 30mm (1.18")		20W	$52.30
T81200-15W	300 Pieces	L: 1200mm (48") D: 30mm (1.18")		30W	$76.00
T12600-8W	150 Pieces	L: 600mm (24") D: 36mm (1.46")		20W	$56.00
T121200-15W	300 Pieces	L: 1200mm (48") D: 36mm (1.46")		30W	$79.30

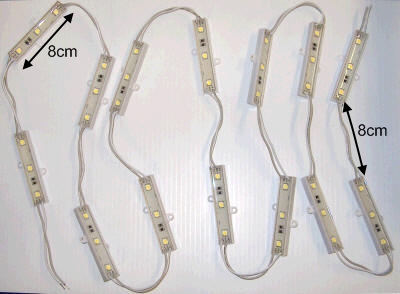

12V LED STRIP LIGHTS

$4.00 per section
Length of each section: 8cm/ 3.1"
Length of wire between each section: 8cm/ 3.1"
(available up to 20 sections long= 328cm/ 10.9 feet)

White

Model NO.: HX-PAR20

Product Description

Lamp base: E26
Operating voltage: AC 110V
Quantity of LEDs:38
Average life: 50,000h to 100,000h
Colour: White
$12.90

Model NO.: HX-PAR38

Product Description

Lamp base: E26
Operating voltage: AC 110V
Quantity of LEDs:72
Average life: 50,000h to 100,000h
Colour: White
$18.90

Model NO.: HX LB50

Product Description
Lamp base: E26
Operating voltage: AC 110V
Quantity of LEDs:12
Average life: 50,000h to 100,000h
Colour: White
$8.30

Model NO.: HX LB100

Product Description
Lamp base: E26
Operating voltage: AC 110V
Quantity of LEDs:38
Average life: 50,000h to 100,000h
Colour: White
$13.70


DK4516HR	$1.74

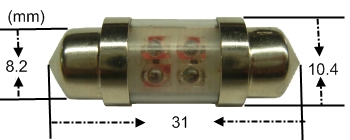

DK4583-R	$3.00
DK4583-Y	$3.00
DK4583-G	$3.00
DK4583-BL	$3.00
DK4583-W	$3.00

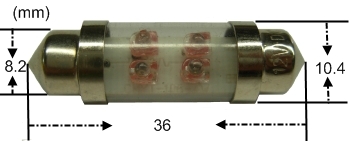

DK4584-R	$3.00
DK4584-Y	$3.00
DK4584-G	$3.00
DK4584-BL	$3.00
DK4584-W	$3.00

Red = $0.50 (ea)

Yellow = $0.50 (ea)

Green = $0.50 (ea)

Blue = $0.50 (ea)

White = $0.50 (ea)

5mm Super Bright LED's

Brightness rating @ 20mA

Product number: LL1503QUHR1 (Red) - 5,500MCD
Product number: LL1503QVYL1 (Yellow) - 4,300MCD
Product number: LL1503VVBG1 (Green) - 6,500MCD
Product number: 555-558SB (Blue) - 1,000-2,000MCD
Product number: LL1503LW1 (White) - 6,000MCD

Large Quantity Pricing:

Red	Yellow	Green	White
+100 (bag of 100) $39.00	+100 (bag of 100) $39.00	+100 (bag of 100) $39.00	+100 (bag of 100) $39.00
+500 (bag of 500) $186.00	+500 (bag of 500) $186.00	+500 (bag of 500) $186.00	+500 (bag of 500) $186.00

NOTE: Email for pricing in larger quantities.

Side Light 4LED 12V

Yellow 4 LED DK4579-Y	$2.00
Red 4 LED DK4579-R	$2.00
Green 4 LED DK4579-G	$2.00
White 4 LED DK4579-W	$2.00
Blue 4 LED DK4579-BL	$2.00

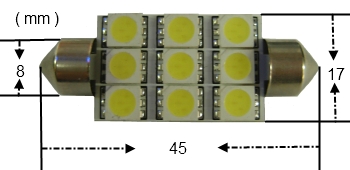

Side Light 9 LED 12V

White
9 LED 12V
DK4576-W

$3.50

Blue
9 LED 12V
DK4576-BL

$3.50

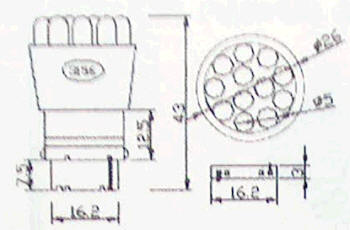

Signal Light 12 LED 12V-DK4568
Type: 3156

RED	630nm	7500mcd	$4.90
YELLOW	595nm	8800mcd	$4.90
GREEN	525nm	21500mcd	$4.90
BLUE	470nm	5600mcd	$4.90
WHITE	x:0.29 y:0.28	10800mcd	$4.90

Signal Light 12 LED 12V-DK4569
Type: 3157

RED	630nm	7500mcd	$4.90
YELLOW	595nm	8800mcd	$4.90
GREEN	525nm	21500mcd	$4.90
BLUE	470nm	5600mcd	$4.90
WHITE	x:0.29 y:0.28	10800mcd	$4.90

DK4582-BL	$1.00
DK4582-W	$1.00
DK4582-R	$1.00
DK4582-G	$1.00

$6.90

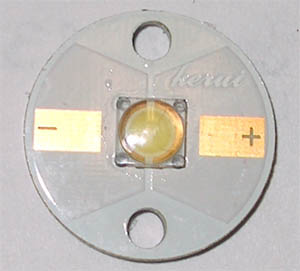

LEDMAN LPRRW-R120

Super Bright 1 Watt

$3.50

120 Degree LED Lamp in High Power with Water Clear Lens

Applications: Safety lamp, Flashlight, Dynamo, Headlight

Items	Symbol	Absolute maximum Rating	Unit
Forward Current	lF	350	mA
Peak Forward Current	lFP	400	mA
Reverse Voltage	VR	5	V
Power Dissipation	PD	1000	mW
Operation Temperature	Topr	-30~+120	˚C
Storage Temperature	Tstg	-40~+120	˚C
Lead Soldering Temperature	Tsol	Max.260˚C for 5 sec Max. (3mm from the base of the epoxy bulb)

RGB LED

G3RGB140D-XT
1Watt
350mA R:620-625nm 2.4-2.8V
G:520-530nm 3.2-3.6V
B:460-470nm 3.2-3.6V
$ 6.90

G5W180CS-200T
5Watt
10-12V
450mA 200-250Im
$ 9.90

10V 600mA max

G6W120C3-70T
6 Watt

7000-9000K(Cool White)	$12.00
5000-7000K(Pure White)
2500-3500K(Warm White)

24V 900mA max

G12W120C3-1000T
12 Watt

3000-3400K	$29.00
5500-6300K
8000-9000K

22-24V 900mA max

G20W140A3-1000T-S
20 Watt

7000-9000K(Cool White)	$29.00
5000-7000K(Pure White)
2500-3500K(Warm White)

32-36V 1.5A max

G50W140A3-3500T
50 Watt

3000-3400K	$87.00
5500-6300K
8000-9000K

If = 20mA

Blue (6VDC) $2.50

Green (6VDC) $2.50
Red (6VDC) $2.50

Yellow (6VDC) $2.50

White (6VDC) $2.50

Blue (12VDC) $2.50

Green (12VDC) $2.50

Red (12VDC) $2.50

Yellow (12VDC) $2.50

White (12VDC) $2.50

Blue (24VDC) $2.50

Green (24VDC) $2.50

Red (24VDC) $2.50

Yellow (24VDC) $2.50

White (24VDC) $2.50

LED Replacement Lamps
T3 1/4 (10mm) Bayonet base

These LED lamps are suitable long life replacements for T3
1/4 bayonet base lamps. The bottom contact is the anode
resistor for the specified voltage.

If = 20mA

Blue (6VDC) $2.50

Green (6VDC) $2.50

Red (6VDC) $2.50

Yellow (6VDC) $2.50

White (6VDC) $2.50

Blue (12VDC) $2.50

Green (12VDC) $2.50

Red (12VDC) $2.50

Yellow (12VDC) $2.50

White (12VDC) $2.50

Blue (24VDC) $2.50

Green (24VDC) $2.50

Red (24VDC) $2.50

Yellow (24VDC) $2.50

White (24VDC) $2.50

LED Replacement Lamps

T3 1/4 (10mm) Screw base

55-113B-0 $2.50
Blue 120V AC/DC 2800 mcd 20 mA 130V Max

55-113G-0 $2.50
Green 120V AC/DC 1300 mcd 20 mA 130V Max

55-113R-0 $2.50
Red 120V AC/DC 2000 mcd 20 mA 130V Max

55-113W-0 $2.50
White 120V AC/DC 2000 mcd 20 mA 130V Max

55-113Y-0 $2.50
Yellow 120V AC/DC 2000 mcd 20 mA 130V Max

T3 1/4 (10mm) Bayonet Base

Energy efficient, long lasting led replacement bulbs are suitable replacements for T3 1/4 (10mm) Bayonet Base Lamps. They are not affected with high vibration or harsh conditions like incandescent bulbs. These replacement bulbs will operate on either AC or DC voltage.

LED Replacement Lamps
Except for the 3mm standard LED's

SIGNAL LIGHT 30 LED 12V

DK4555W

WHITE

10800mcd

$ 7.50

SIGNAL LIGHT 30 LED 12V

DK4555BL

BLUE

5300mcd

$ 6.50

SUPER BRIGHT LED CLUSTER, SINGLE CONTACT, REPLACEMENT LAMPS

These LED lamps are suitable long life replacements for 15mm bayonet base lamps. The bottom contact is the anode (+) and the bayonet sleeve is the cathode. With internal resistor for 12VDC.

	Color		Super Red
	Volts		12VDC
	Brightness		7500MDC
	Forward Current		80 mA
	14V Max

*Replaces 1156 bulb

Part No.	Color	Volts	LM	MCD	If	Price	PayPal
55-256R-0	Super Red	12V	9.5	7500	80ma	$5.38
55-256G-0	Ultra Green	12V	20.0	21500	80ma	$10.29
55-256W-0	Super White	12V	15.0	10800	80ma	$10.29
DK4552-BL	Super Blue	12V		5600	80ma	$6.38
DK4552-Y	Super Yellow	12V		8800	80ma	$5.38

14V max

SUPER BRIGHT LED CLUSTER, DUAL CONTACT, REPLACEMENT LAMPS

These LED lamps are suitable long life replacements for 15mm bayonet base, dual contact lamps. With internal resistor for 12VDC

	Color		Super Red
	Volts		12VDC
	Brightness		7500MDC
	Forward Current		80/25 mA
	14V Max

*Replaces 1157 bulb

Part No.	Color	Volts	LM	MCD	If	Price	PayPal
55-257R-0	Super Red	12V	9.5	7500	80ma	$5.38
55-257Y-0	Super Yellow	12V	20	21500	80ma	$5.38
DK4556-W	Super White	12V		10800	80ma	$5.38
DK4556-BL	Super Blue	12V		5600	80ma	$5.38
DK4556-G	Super Green	12V		21500	80ma	$5.38

14V max

Red = $0.12

Orange =$0.12

Yellow = $0.12

Green = $0.12

Standard 3mm LED's

Brightness rating @ 10mA

Product number: 55-532 (Red) 3.0MCD
Product number: 55-533 (Orange) 3.5MCD
Product number: 55-534 (Yellow) 18MCD
Product number: 55-535 (Green) 18MCD

Red = $0.60 Yellow = $0.60 Green = $0.60 White = $0.60 Blue = $0.60	Super bright 3mm LED's Brightness rating @ 20mA Product number: 55-532SB (Red) 800-1000MCD Product number: 55-534SB (Yellow) 1000-1200MCD Product number: 55-535SB (Green) 2000-3000MCD Product number: 55-536SB (White) 1000-2000MCD Product number: 55-537SB (Blue) 800-1000MCD
Red = $0.10 Orange = $0.12 Yellow = $0.12 Green = $0.12 Blue = $1.20	Standard 5mm LED's Brightness rating @ 10mA Product number: 55-552 (Red) - 30MCD Product number: 55-553 (Orange) - 30MCD Product number: 55-554 (Yellow) - 30MCD Product number: 55-555 (Green) - 30MCD Product number: 55-558 (Blue) - 60MCD
Infra Red = $0.96 Ultra Violet = $0.96	5mm High Brightness LED's Product number: LIR1 (Infra Red) Product number: LUV1 (Ultra Violet)
Red = $0.30 Green = $0.30	3mm R/A LED's Brightness level @ 10mA Product number: 55-542 (Red) - 3.2MCD Product number: 55-545 (Green) - 15MCD
Red = $0.36 Yellow = $0.48 Green = $0.48	5mm R/A LED's Brightness rating @ 10mA Product number: 55-562 (Red) - 3.2MCD Product number: 55-564 (Yellow) - 5.0MCD Product number: 55-565 (Green) - 5.7MCD
Red = $0.72 Yellow = $0.72 Green= $0.72	5mm Flashing LED's 5mm flashing LED. Requires no external circuitry. Easily driven by TTL or C-MOS (3-12VDC) Product number: 55-572- 1.6MCD
Red = $0.12 Orange = $0.24 Yellow = $0.18 Green = $0.18	Rectangular LED's 2 x 5mm rectangular LED's Product number: 55-602 (Red) Product number: 55-603 (Orange) Product number: 55-604 (Yellow) Product number: 55-605 (Green)
Red/Green = $0.30	BI-Color LED's 2-lead dual color LED Available only in red/green Product number: 55-582 (Red/Green) - 3.7MCD
Red/Green = $0.30	TRI-Color LED's 3-lead dual color LED Available only in red/green Product number: 55-592
Red/Green/Blue = $1.00	5mm Round with flange Full color RGB LED lamp Product number: RGB 5MM
$0.24	3mm Mounting Bezel 3mm plastic mounting bezel (1piece) Product number: 55-530
$0.10	5mm LED Holder Plastic 2 piece panel mount holder for 5mm LED's. Product number: 55-550
$0.42	5mm LED Holder (Concave) Plastic 1 piece panel mount holder for 5mm LED's Product number: 55-550A
$0.30	5mm LED Holder (Convex) Plastic 1 piece panel mount for 5mm LED's Product number: 55-550B

If = 4.8mA

Blue = $9.00

Green = $9.00

Red = $9.00

Yellow = $9.00

White = $9.00

Blue = $9.00

Green = $9.00

Red = $9.00

Yellow = $9.00

White = $9.00

T3 1/4 (10mm) Bayonet Base

If = 4.8mA

Blue = $9.00

Green = $9.00

Red = $9.00

Yellow = $9.00

White = $9.00

T3 1/4 (10mm) Screw Base

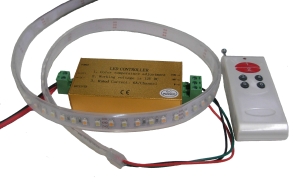

Flexible SMD Light Ribbon -12 Volt -This product adopts a kind super flexible PCB board as base -Each ribbon could be connected together. It is exquisite in appearance with 3M tape on its back -The luminous body is of very high intensity, large viewing angle, good quality and stability -Three LEDs make one group, and each group can be cut according to the length requirement -This product could be widely used for indoor/outdoor lighting decoration, such as shop window lighting, cove lighting edge decoration, car decoration, small floodlight. etc.

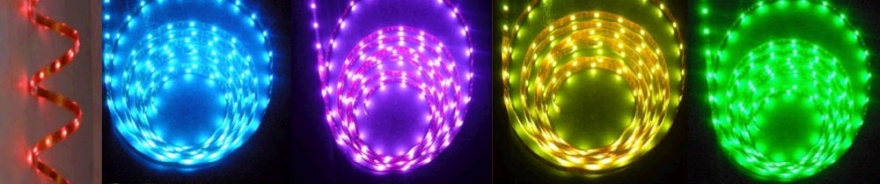

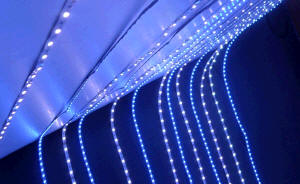

LED ROPE
RGB-Waterproof
Red / Green / Blue	9 leds = 30cm long	$ 10.75
Red / Green / Blue	1 roll = 150 leds 5 meters long	$ 119.00
LED
Blue	9 leds = 30cm long	$ 6.75
Blue	1 roll = 150 leds 5 meters long	$ 99.00
Yellow	15 leds = 25cm long	$ 7.50
Yellow	1 roll = 300 leds 5 meters long	$ 99.00
Green	15 leds = 25cm long	$ 7.50
Green	1 roll = 300 leds 5 meters long	$ 119.00
White	15 leds = 25cm long	$ 7.50
White	1 roll = 300 leds 5 meters long	$ 109.00
Warm White	9 leds = 30cm long	$ 6.75
Warm White	1 roll = 150 leds 5 meters long	$ 99.00
Waterproof
Red	15 leds = 25cm long	$ 11.25
Red	1 roll = 300 leds 5 meters long	$ 139.00
Purple	9 leds = 30cm long	$ 12.00
Purple	1 roll = 150 leds 5 meters long	$ 129.00
White	15 leds = 25cm long	$ 11.25
White	1 roll = 300 leds 5 meters long	$139.00
Warm White	9 leds = 30cm long	$ 8.75
Warm White	1 roll = 150 leds 5 meters long	$ 79.00

6 key controller

for RGB

12 Volt

$ 29.00

Waterproof LED Driver

INPUT VOLTAGE	AC 110-250V 50/60Hz
OUTPUT VOLTAGE	DC 12±0.5V
OUTPUT POWER	18W
OUTPUT CURRENT	DC 1.5A

$ 15.50
