Lamps and Indicators

Car 12 Volt Lights


3.05 14V 60mA
Wire: 20mm Bulb: 7.5mm
TYPE1
$1.50


4.10 14V 80mA
Wire: 25mm Bulb: 5mm
TYPE3
$1.50


5 14V 80mA
Wire: 40mm Bulb: 10mm
TYPE5
$1.50


3.05 14V 60mA
Wire: 20mm Bulb: 7.5mm
TYPE7
$1.50


4.10 14V 80mA
22.5mm
TYPE2
$2.00


5 14V 100mA
22.5mm
TYPE6
$2.00


4.10 14V 100mA
15mm
TYPE4
$2.00


4.10 14V 100mA
12.5mm
TYPE8
$2.00

Lamps


1 1/4" Fuse Bulb
F8250

6 Volt $1.99

8 Volt

12 Volt



E10 (T3 1/4) Screw Base Sockets

55-200
.57


With right angle mounting tab
55-201
.90

E10 (T3 1/4) Bayonet Base Sockets


55-202
.99


With straight mounting tab
55-203
.99


With right angle mounting tab
55-204
.99



Screw Base Lamp Holder
Part No.
Watts
Volts
Bracket Style

Width

Length
Price PayPal
75W 75W 125V C1 8mm 33mm $1.00



Part No.
Volts
Amps
Price PayPal
55-056 12 140mA $1.57



Part No.
Volts

Amps

Base

Price PayPal
55-086 12 100mA T 1-3/4(5mm) $0.89



Part No.

NE-2 Neon Bulb

Price PayPal
55-120 $0.60




FLASHLIGHT BULBS (B3 1/2)
Part No.
Volts
Amps
Spherical Candle Power (CP)
Life [hrs]
Price PayPal
56-PR2-0 2.38V .50A .80 15 $0.72

56-PR6-0 2.47V .30A .45 30 $0.72

56-PR17-0 4.90V .30A 1.2 31.8 $0.72

56-PR20-0 8.63V .50A 5.0 31.8 $0.72

DISCOUNTS FOR QUANTITY OF 10 OR MORE, EMAIL FOR QUOTES.

SCREW/BAYONET (G3 1/2)
Part No.
Base
Volts
Amps
Spherical Candle Power (CP)
Life [hrs]
Price PayPal
56-0131-0 Screw 1.3V .10A .03 50 $0.72

56-1447-0 Screw 18.0V .15A 1.5 250 $0.72

56-0051-0 Bayonet 7.5V .22A 1.0 1000 $0.72

56-0182-0 Bayonet 14.0V .18A 1.0 2000 $0.72

56-0356-0 Bayonet 28.0V .17A 3.5 500 $0.72

DISCOUNTS FOR QUANTITY OF 10 OR MORE, EMAIL FOR QUOTES.

SCREW/BAYONET (G4 1/2)
Part No.
Base
Volts
Amps
Spherical Candle Power (CP)
Life [hrs]
Price PayPal
56-0407-0 Screw 4.9V .30A 1.2 50 $0.72

56-0502-0 Screw 5.1V .15A .60 100 $0.72

56-0605-0 Screw 6.15V .50A 3.4 15 $0.72

56-0055-0 Bayonet 7.0V .41A 2.0 500 $0.72

56-0293-0 Bayonet 14.0V .33A 2.0 7500 $0.72

56-0456-0 Bayonet 28.0V .17A 2.0 3000 $1.03

DISCOUNTS FOR QUANTITY OF 10 OR MORE, EMAIL FOR QUOTES.

DC BAYONET (G6)
Part No.
Base
Volts
Amps
Spherical Candle Power (CP)
Life [hrs]
Price PayPal
56-0064-0 Bayonet 7.0V .63A 3.0 1000 $0.72

56-1178-0 Bayonet 13.5V .69A 4.0 5000 $1.26

56-0624-0 Bayonet 28.0V .37A 6.0 1000 $2.52

56-1224-0 Bayonet 34.0V .16A 3.8 275 $2.26



DC BAYONET (S8)
Part No.
Base
Volts
Amps
Spherical Candle Power (CP)
Life [hrs]
Price PayPal
56-1076-0 Bayonet 12.8V 1.8A 32 200 $0.72

56-1204-0 Bayonet 28.0V .71A 21 400 $2.08

56-1638-0 Bayonet 28.0V 1.02A 32 500 $3.16

56-1229-0 Bayonet 34.0V .45A 15 275 $3.16

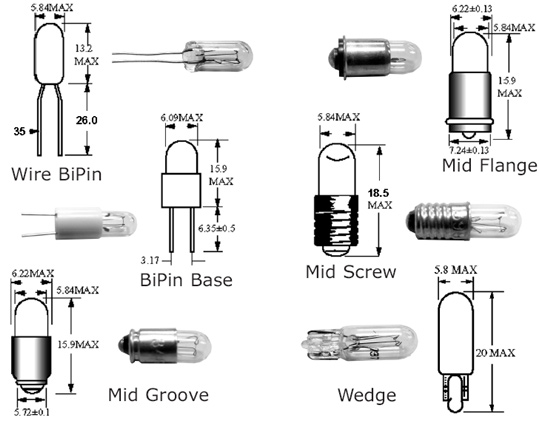

T1 3/4 BULBS
Part No.
Base
Volts
Amps
Spherical Candle Power (CP)
Life [hrs]
Price PayPal
56-1738-0 Wire BiPin 2.7V .06A .04 6000 $1.08

56-2112-0 Wire BiPin 6.3V .20A .55 20000 $1.54

DK4443C Wire BiPin 12.0V .10A .50 10000 $1.11

56-1764-0 Wire BiPin 28.0V .04A .34 4000 $0.86

56-0375-0 Mid Flange 3.0V .015A .003 20000 $1.36

56-0349-0 Mid Flange 6.3V .20A .55 20000 $0.85

56-8918-0 Mid Flange 14.0V .10A .50 10000 $1.54

56-0459-0 Mid Flange 22.0V .04A .30 5000 $1.80

56-7341-0 Mid Flange 28.0V .065A .65 5000 $1.87

56-7349-0 BiPin Base 6.3V .20A .55 20000 $1.44

56-7373-0 BiPin Base 14.0V .10A .50 10000 $1.44

56-7376-0 BiPin Base 28.0V .065A .65 10000 $1.96

56-1769-0 Mid Screw 2.5V .20A .20 1000 $1.36

56-0378-0 Mid Screw 6.3V .20A .40 20000 $1.54

56-0373-0 Mid Screw 14.0V .08A .50 2500 $1.17

56-0399-0 Mid Screw 28.0V .04A .30 7000 $1.08

56-0398-0 Mid Groove 6.3V .20A .55 20000 $1.08

56-0346-0 Mid Groove 18.0V .04A .15 10000 $1.08

56-0334-0 Mid Groove 28.0V .04A .34 25000 $0.86

56-0086-0 Wedge 6.3V .20A .40 20000 $1.04

56-0037-0 Wedge 14.0V .09A .50 2500 $0.86

56-0017-0 Wedge 28.0V .065A .65 5000 $0.78

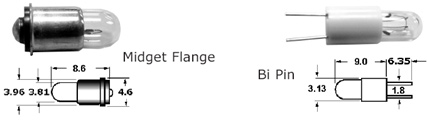

T1 BULBS
Part No.
Base
Volts
Amps
Spherical Candle Power (CP)
Life [hrs]
Price PayPal
56-0718-0 Midget Flange 5.0V .115A .15 40000 $1.96

56-0022-0 Midget Flange 14.0V .04A .132 16000 $2.34

56-6839-0 Midget Flange 28.0V .024A .15 16000 $1.96

56-7715-0 BiPin 5.0V .115A .15 40000 $2.58

56-8099-0 BiPin 18.0V .026A .15 16000 $1.87

56-7839-0 BiPin 28.0V .024A .15 16000 $2.03

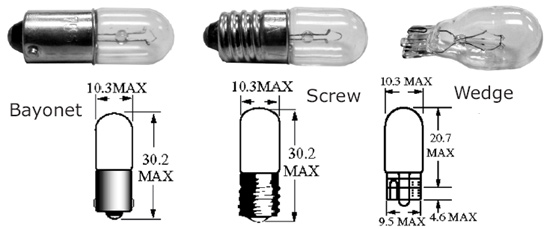

T3 1/4 BULBS
Part No.
Base
Volts
Amps
Spherical Candle Power (CP)
Life [hrs]
Price PayPal
56-0043-0 Bayonet 2.5V .50A .50 3000 $0.72

56-0755-0 Bayonet 6.3V .15A .33 20000 $0.72

56-1815-0 Bayonet 14.0V .20A 1.4 3000 $0.72

56-1873-0 Bayonet 28.0V .20A 3.0 2500 $1.04

P105 Bayonet 120V       $2.50

56-0042-0 Screw 3.2V .35A .50 3000 $0.72

56-0046-0 Screw 6.3V .25A .90 3000 $0.72

56-1821-0 Screw 28.0V .17A 3.5 500 $0.72

56-0259-0 Wedge 6.3V .25A .65 5000 $0.72

56-0168-0 Wedge 14.0V .35A 3.0 1500 $0.72

56-0464-0 Wedge 28.0V .17A 3.0 1500 $1.07

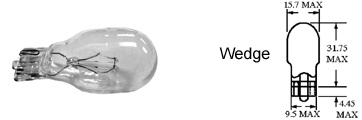

T5 WEDGE BASE BULBS
Part No.
Base
Volts
Amps
Spherical Candle Power (CP)
Life [hrs]
Price PayPal
56-0908-0 Wedge 6.0V 1.5A 12 50 $1.04

Indicators


T 3-1/4 (10mm) bayonet base

55-322(Red) $2.50

55-325(Green) $2.50




T 3-1/4 (10mm) bayonet base

55-332(Red) $2.50

55-335(Green) $2.50




T 3-1/4 (10mm) bayonet base

55-342(Red) $2.50

55-343(Amber) $2.50

55-345(Green) $2.50




T 3-1/4 (10mm)screw base

55-352(Red) $2.50

DK4403(Blue) $2.50

55-355(Green) $2.50




T 3-1/4 (10mm) screw base

55-362(Red) $2.50

55-365(Green) $2.50

DK4401(Blue) $2.50




T 3-1/4 (10mm) screw base

55-372(Red) $2.50

55-375(Green) $2.50

DK4402(Amber) $2.50





T 1- 3/4 (5mm) screw base

           DK - 4398 (Red)

                 $ 1.78



DK - 4398 (Yellow)

                 $ 1.78



               55-315  (green)

                 $ 1.78






Black plastic bezel LED indicator
These indicators require a resistor to limit current

55-430(Red LED) $1.93

55-431(Green LED) $1.93




Chrome plated LED indicator
These indicators require a resistor to limit current

55-432(Red LED) $1.80

55-433(Green LED) $1.80

55-434(Orange LED) $1.80




Internal indicators (internal resistor) 120VAC

55-442(Red Lens) $2.00

55-443(Amber Lens) $2.00

55-445(Green Lens) $2.00




Neon indicators (internal resistor) 120VAC

55-462(Red Lens) $2.00

55-463(Amber Lens) $2.00

55-465(Green Lens) $2.00




Neon indicators (internal resistor) 120VAC

55-452(Red Lens) $1.90

55-453(Amber Lens) $1.90

55-455(Green Lens) $1.90




Incandescent indicators 12VDC

55-472(Red Lens) $2.21

55-473(Amber Lens) $2.21

55-475(Green Lens) $2.21

Incandescent indicators 12VDC-Red

$2.21

Incandescent indicators 12VDC-Orange $2.21

Incandescent indicators 12VDC-Green $2.21




Neon indicators (internal resistor) 220VAC

4430-220(Red Lens) $2.50

4430-220(Amber Lens) $2.50

4430-220(Green Lens) $2.50






Neon indicators (internal resistor) 120VAC

55-482(Red Lens) $2.50

55-483(Amber Lens) $2.50

55-485(Green Lens) $2.50




Incandescent indicators 12VDC

55-492(Red Lens) $2.50

55-493(Amber Lens) $2.50

55-495(Green Lens) $2.50




Incandescent indicators 24V

55-496(Red Lens) $2.50

55-497(Amber Lens) $2.50

55-498(Green Lens) $2.50


Halogen Display Lamp
12V 50W

$1.00 each

Quantity Discount

 10 for $8.00

 50 for $35.00

 100 for $60.00


Email us if you have any questions.
