Application |
|
- Designed to enclose electrical and/or electronic equipment and
protect against harsh, industrial environments.
- For use as instrument enclosures, electric, hydraulic or pneumatic
control housings, electrical junction boxes or terminal wiring
enclosures.
- Impressive styling features make the Eclipse Junior a suitable
addition to any high—tech equipment installation.
- For high temperature applications, a gasket retainer may be
required, please refer to factory.
|
|
Standards |
- UL 508 Type 3R, 4, 12 and 13
- CSA Type 3R, 4, 12 and 13
- Complies with
- NEMA Type 3R, 4, 12 and 13
|
|

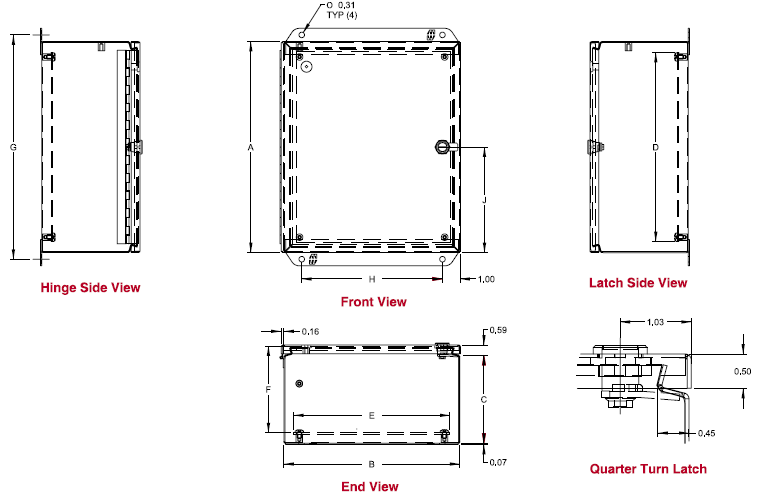

Construction |
- Body and cover are formed from 16 gauge steel.
- Smooth, continuously welded seams without knockouts, cutouts, or
holes.
- Formed lip on enclosure to exclude flowing liquids and
contaminants.
- 14 gauge welded brackets provide for enclosure mounting.
- Continuously hinged cover has 304 stainless steel hinges and
provides 180° opening.
- Door latches feature the added safety of quarter turn slot
requiring use of tool for opening.
- Quarter turn latches formed from black zinc diecast.
- Oil resistant gaskets are permanently secured.
- Models larger than 4"x4" include a removable 14 gauge galvanized
inner panel.
- Internal threaded weld studs are provided for mounting inner
panels.
- A bonding stud is provided on the door and a grounding stud is
provided on the enclosure.
- Includes grounding kit and a hardware kit with panel mounting
screws.
|
|
Finish |
- Cover and enclosure are finished in recoatable smooth ANSI 61 gray
powder coating.
- Inner panels are unpainted galvanized steel.
|
|
