Perforated Chassis Covers (1451 Series)

Click Here To EnlargeClick Here To Enlarge
                ASA 61 Grey                                Satin Black

Key Features:

• For use with the 1441 and 1444 series chassis.
• 20 gauge steel ends welded to a perforated steel wrapper.
• Choice of ASA 61 grey or satin black powder paint finish.
• 4 self-tapping screws included.


Part Number

Reader
File

Drawing
File Size
AutoCAD
.dxf File
(zipped)
.zip
File Size

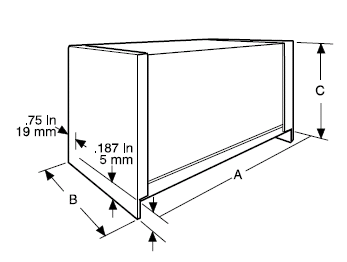

Units

Dimensions

Use with Chassis
(inches)

ASA61 Gray
Satin Black

Width

Depth

Height

1451-10
$26.68

 1451-10BK3
$26.68

 16K 16K inch 8 4 5.2

4 x 8

mm 203 102 132
1451-14
$30.17

 1451-14BK3
$30.17

 16K 16K inch 9 5 5.2

5 x 9

mm 228 127 132
1451-16
$33.45

 1451-16BK3
$33.45

 16K 16K inch 10 6 5.2

6 x 10

mm 254 152 132
1451-22
$38.16

 1451-22BK3
$38.16

 16K 16K inch 12 8 5.2

8 x 12

mm 305 203 132
1451-26
$39.80

 1451-26BK3
$39.80

 16K 16K inch 16 8 5.2

8 x 16

mm 406 203 132
1451-29
$38.95

 1451-29BK3
$38.95

 16K 16K inch 10 12 5.2
10 x 12
mm 254 305 132
1451-30
$46.17

 1451-30BK3
$46.17

 16K 16K inch 17 10 5.2

10 x 17

mm 432 254 132
Views:
ASA 61 Grey
Upside Down (to show interior)
Satin Black
Upside Down (to show interior)
Click Here To Enlarge
click to enlarge
Click Here To Enlarge
click to enlarge
ASA 61 Grey Assembled
with matching steel chassis (not included)
Satin Black Assembled
with matching steel chassis (not included)
Click Here To Enlarge
click to enlarge
Click Here To Enlarge
click to enlarge
ASA 61 Grey Assembled
with aluminum chassis (not included)
Satin Black Assembled
with aluminum chassis (not included)
